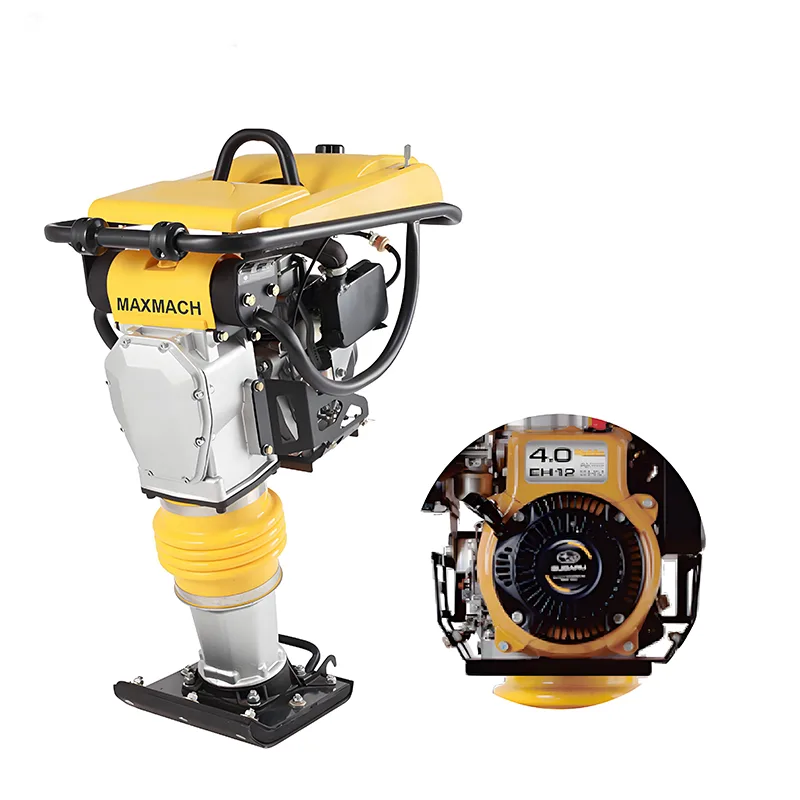

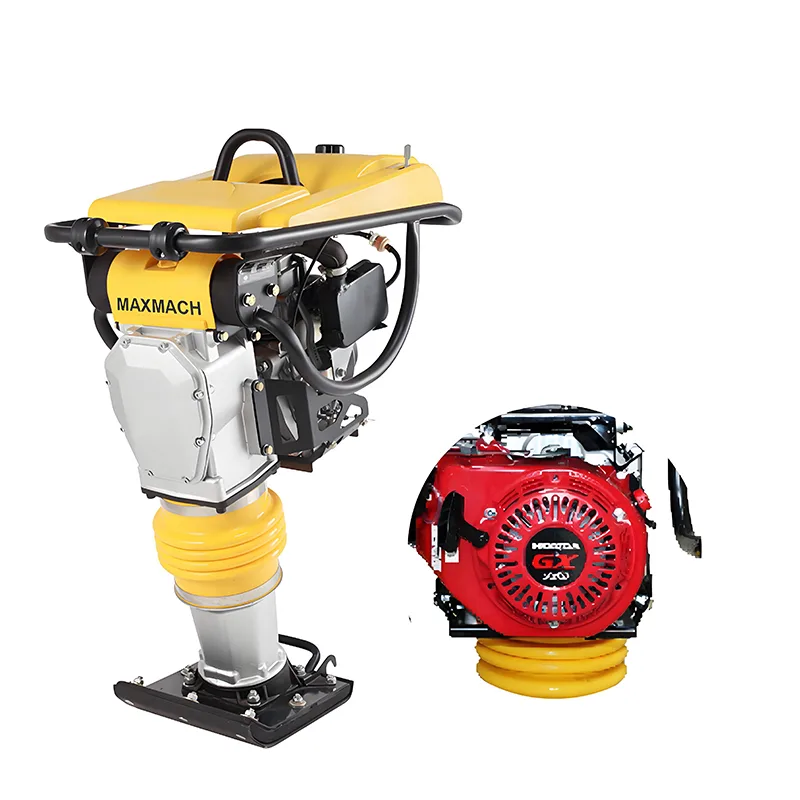

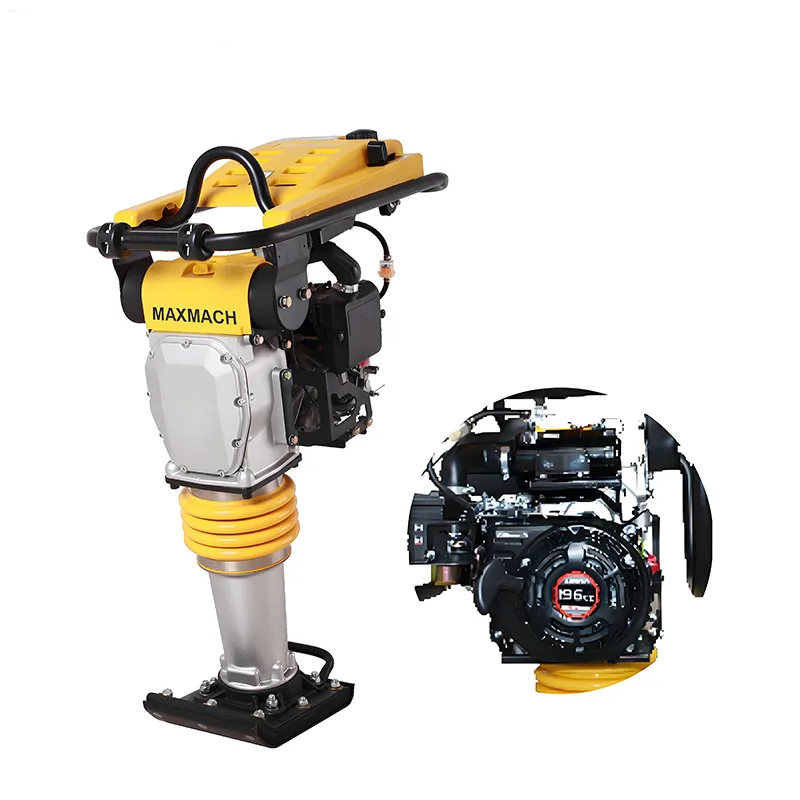

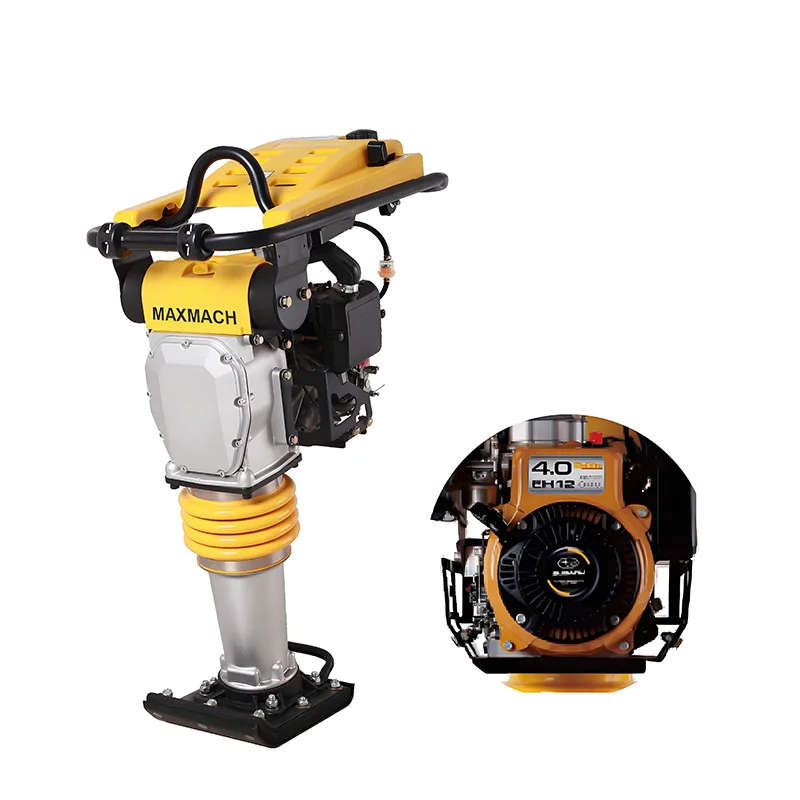

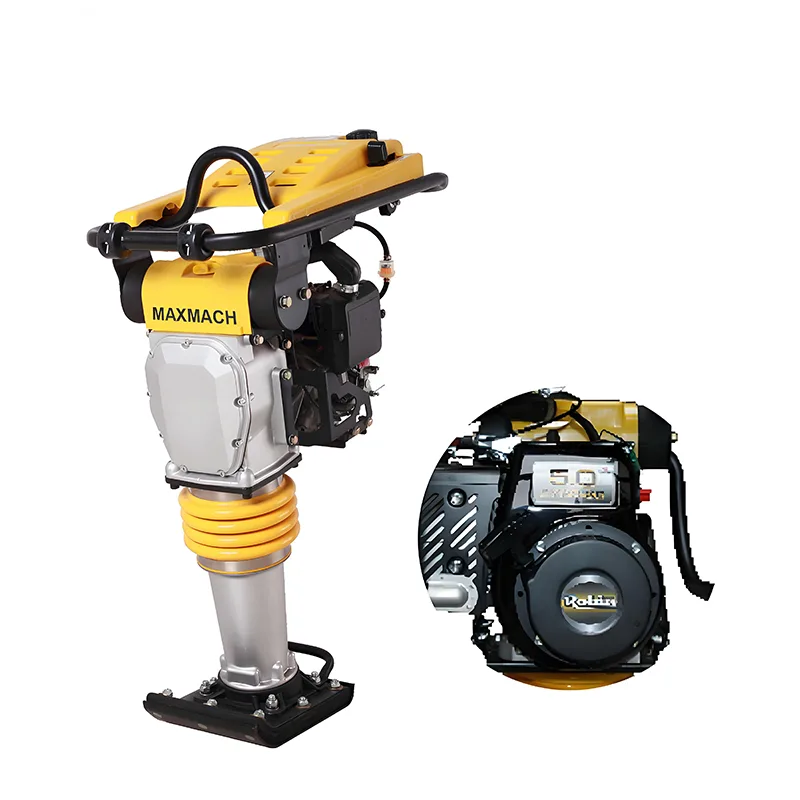

MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer
MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer - Image 2
MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer - Image 3
MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer - Image 4
MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer - Image 5
MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer - Image 6

MAXMACH High Quality Vibratory Jumping Compactor Tamping Rammer

Category

The MAXMACH Vibratory Jumping Compactor is an industrial-grade tamping rammer designed for high-demand construction projects. Powered by a 5HP engine and featuring a vibratory jumping structure, it integrates robust performance with practical usability—delivering 14kN ramming force and a percussion rate of 640-680 times/min, while maintaining an 88kg weight and 10-13m/min advance speed. Suitable for both new and used equipment requirements, it comes with comprehensive quality assurances, including provided video outgoing-inspection, machinery test reports, and a 1-year warranty, making it a reliable choice for industrial construction teams and professional contractors.

more about us
Get a free quote !

Product Specification​

Brand Name Maxmach Voltage 220V
Power(W) 5hp Core Components Engine
Place of Origin Zhejiang,China Weight 88 kg
Warranty 1 Year UNIQUE SELLING
POINT		 High operating efficiency
Video outgoing-
inspection		 Provided Machinery Test
Report		 Provided
Dimension(L*W*H) 98*52*61cm After Warranty Service Video technical support
Ramming force 14KN Packaging Detail wooden packs or carton
Advance Speed 10-13M/Min Jumping Stroke 40-80mm
Oil Tank 2.8L Plate size 330*285mm
Percussion Rate 640-680 times/min Application Machine Impact Rammer
OEM Accept Accepted

Key Features & Benefits

  • Vibratory Jumping Design for Deep Compaction
14kN strong ramming force paired with a high percussion rate of 640-680 times/min enables quick penetration into soil layers, achieving uniform and dense compaction. The adjustable jumping stroke of 40-80 mm adapts to soils of different humidity and density, meeting industrial-level compaction standards.
  • Industrial-Grade Core Configuration
The 5HP core engine delivers stable power output, suitable for high-intensity operations in industrial construction. A 2.8L oil tank capacity supports long continuous working hours, reducing downtime losses from frequent refueling.
  • Flexible & Maneuverable for Confined Spaces
The 88kg lightweight design combined with compact dimensions (98×52×61 cm) allows flexible operation in narrow areas such as workshop foundations and trenches. The advance speed of 10-13 m/min balances efficiency and precision, ideal for rapid construction of small to medium-sized industrial projects.
  • Humanized Design & Reliable Protection
The 330×285 mm widened tamping plate increases contact area, improving compaction flatness. The overall structure is optimized for mechanics, ensuring stable operation and impact resistance, extending equipment service life and reducing maintenance costs.
  • Comprehensive Quality & After-Sales Guarantee
Video outgoing-inspection and machinery test reports are provided before delivery to ensure product quality compliance. A 1-year warranty covers core components, and video technical support is available after warranty to quickly resolve various issues during use. OEM customization is accepted to meet individual user needs.

Product Applications

As an industrial-grade impact compaction equipment, it focuses on high-intensity, high-demand construction tasks:
  • Industrial Workshop Foundation Compaction: Suitable for soil compaction of foundations for factories, warehouses, and other industrial buildings, enhancing foundation bearing capacity and avoiding structural settlement in the later stage.
  • Municipal Engineering Trench Backfilling: Used for backfilling compaction of municipal pipelines such as gas, water supply, drainage, and electricity, preventing pipeline displacement or road collapse.
  • Construction Site Foundation Reinforcement: Adaptable for soil reinforcement of foundation pits and slopes in building construction, improving foundation stability and ensuring construction safety.
  • Small-Scale Site Leveling: Applicable for leveling and compaction of construction sites and temporary roads, laying a solid foundation for subsequent projects.
